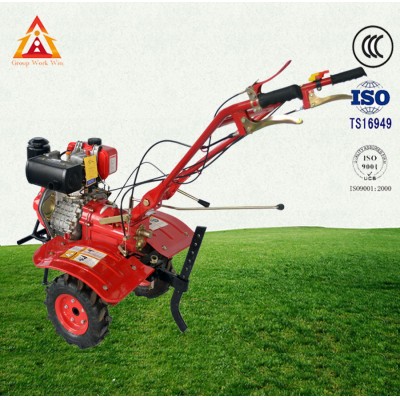

LY 1100 series tiller
| LY1100type A | LY1100 type D | 3TG-6Q | |||||||
| Structure | Front-mounted | Front-mounted | Structure | Front- mounted | |||||
| Engine model | 186FAAir cooled diesel engine | 186FAAir cooled diesel engine | Engine model | 190Gasoline engine | |||||
| Rated power | 6.3kw | 6.3kw | Rated power | 7.0kw | |||||
| Dimension(LxWxH) | 1780x970x990 | 1780x970x990 | Dimension(LxWxH) | 16000x800x1000 | |||||
| Weight | 168kg | 166kg | Weight | 142kg | |||||
| Start mode | Electrice start | Electrice start | |||||||
| Transmission mode | Gear transmission | Gear transmission | Transmission mode | Chain drive | |||||
| Connection mode | Direct connection | Direct connection | Connection mode | Pin connected | |||||
| Adjustment of handlebar | Horizontal | 360 | 360 | Adjustment of handlebar | Horizontal | 360 | |||
| Vertical | 120 | 120 | Vertical | 45 | |||||
| Knife roll | Rotate speed | Igear.84.5 r/min;IIgear.145.1r/min | Igear.84.5 r/min;IIgear.145.1r/min | Main clutch type | Tensioner | ||||
| Max.turning radius | 195mm | 195mm | Ditching width | 》500mm | |||||
| Number of blades | 24 | 24 | Furrowing | 600mm | |||||
| Model of rotary blade | 195mm | 195mm | Operating speed | 0.72-1.44km/h | |||||
| Main clutch type | Friction disc | Friction disc | Prouctivity | 0.03-0.06(h.m) | |||||
| Tilling width | 1200mm | 1200mm | Fuel consumption | 《10kg/hm | |||||
| Tilling depth | 》100mm | 》100mm | Blades type | Trenching blade | |||||
| Operating speed | 》0.3m/s | 》0.3m/s | Number of blades | 10—16 | |||||
| Prouctivity | 0.1-0.2hm | 0.1-0.2hm | Speed | 320-500 | |||||
| Fuel consumption | 《10kg/hm | 《10kg/hm | Max.turning radius | 200mm | |||||
| Wheel size | 600-12 | 600-12 | |||||||
| Outlook | Cover and lights | ||||||||
Product quality protection
